Delivering certainty: LM places DfMA bridge for HS2

28.10.20

Laing O'Rourke's joint venture team, working with Expanded completed its latest construction milestone over the weekend of 24-25 October, and placed a 914 tonne modular bridge over a major road in the West Midlands, with the route re-opening to traffic 24 hours ahead of schedule.

The second of four bridges to be completed on the site of HS2’s new Interchange Station at the heart of the new high-speed network, this new bridge will carry the A452 and form part of a major remodelling of the local road network. This will improve the circulation of traffic around the UK’s new high-speed railway, integrating the existing network with the new Interchange Station.

This was the latest example of the company's DfMA strategy in action, with the abutments and major structural elements delivered for Expanded by Laing O'Rourke's Centre of Excellence for Modern Construction (formerly EIP) at Worksop. Design was supported by WSP and Ramboll, and Darlington-based Cleveland Bridge supplied the steel girders.

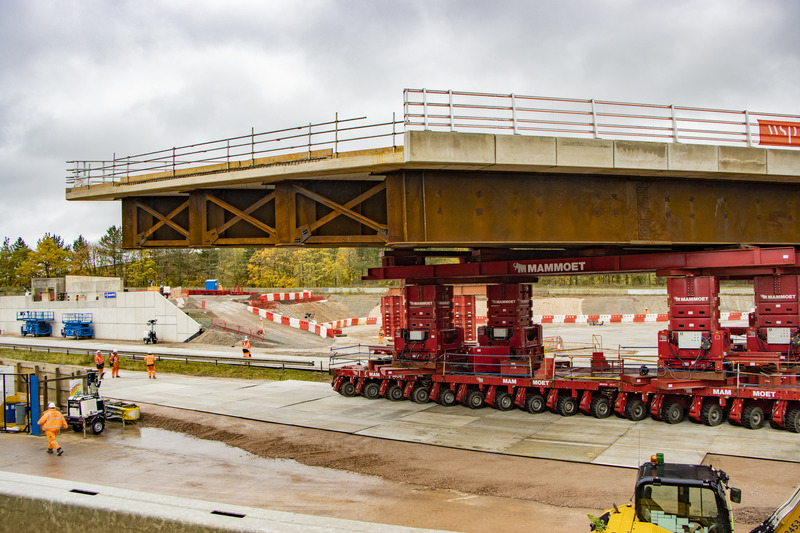

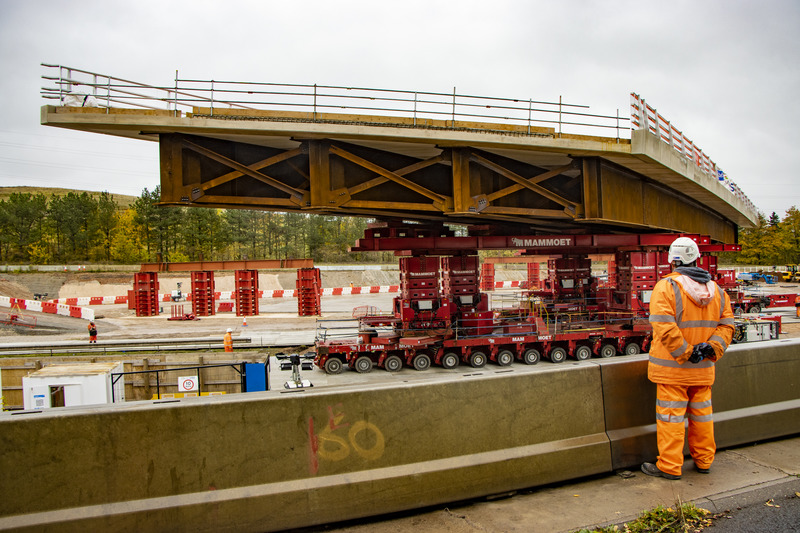

After building the bridge in modular sections, the final part of this process was a 128-wheel hydraulic platform taking just 45 minutes to move the bridge span 150 metres, where it was lowered onto the DfMA abutment shells to complete the overall bridge structure. Traditional construction methods would have required several weeks of lane closures on both carriageways, followed by additional weekend and overnight closures.​

Quote icon

As work ramps up at one of HS2’s largest construction sites, it was fantastic to see this next milestone achieved so quickly. It was finished 24 hours ahead of schedule and follows hot on the heels of the installation of the bridge over the M42 in August, which was also completed early. We’re pleased to see innovations like this on the project dramatically reducing environmental impacts and disruption for road users. With construction of the railway now well underway, 22,000 jobs being created and an estimated 400,000 supply chain contracts available, HS2 is playing a pivotal role in helping Britain’s economic recovery.”

David Bennett HS2's Delivery Director
Quote icon

Digital design, offsite manufacturing and modular components are the enablers of innovative construction methodology – they bring greater efficiency and safety to major infrastructure projects like this, and importantly, can save months on delivery schedules. That’s great news for clients, stakeholders and local communities alike. This is the future of bridge design and delivery.”

Richard Fairhurst LM Senior Project Manager
Quote icon

Our successful partnership approach has led to the design and construction of HS2’s first permanent bridges including one over the M42, the A452 bridge over the A446, as well as two other bridges over what will be the main HS2 railway line adjacent to the new HS2 Interchange Station. We are proud that through collaboration with LM JV, Highways England and local authorities, the application of 3D modelling techniques to align highways, earthworks, structures and utilities with the existing infrastructure and the innovative use of offsite manufacturing and Design for Manufacturing and Assembly techniques, we were able to safely deliver on this ground-breaking project.”

Jon England DJV Project Director

Work continues for LM (Laing O'Rourke and J. Murphy joint venture) at the Interchange site with two further bridges well under way, also built with modular abutment shells, but with pre-stressed concrete girders that will span the high speed line itself.
